TL0103007 - Voltage sensor

Description

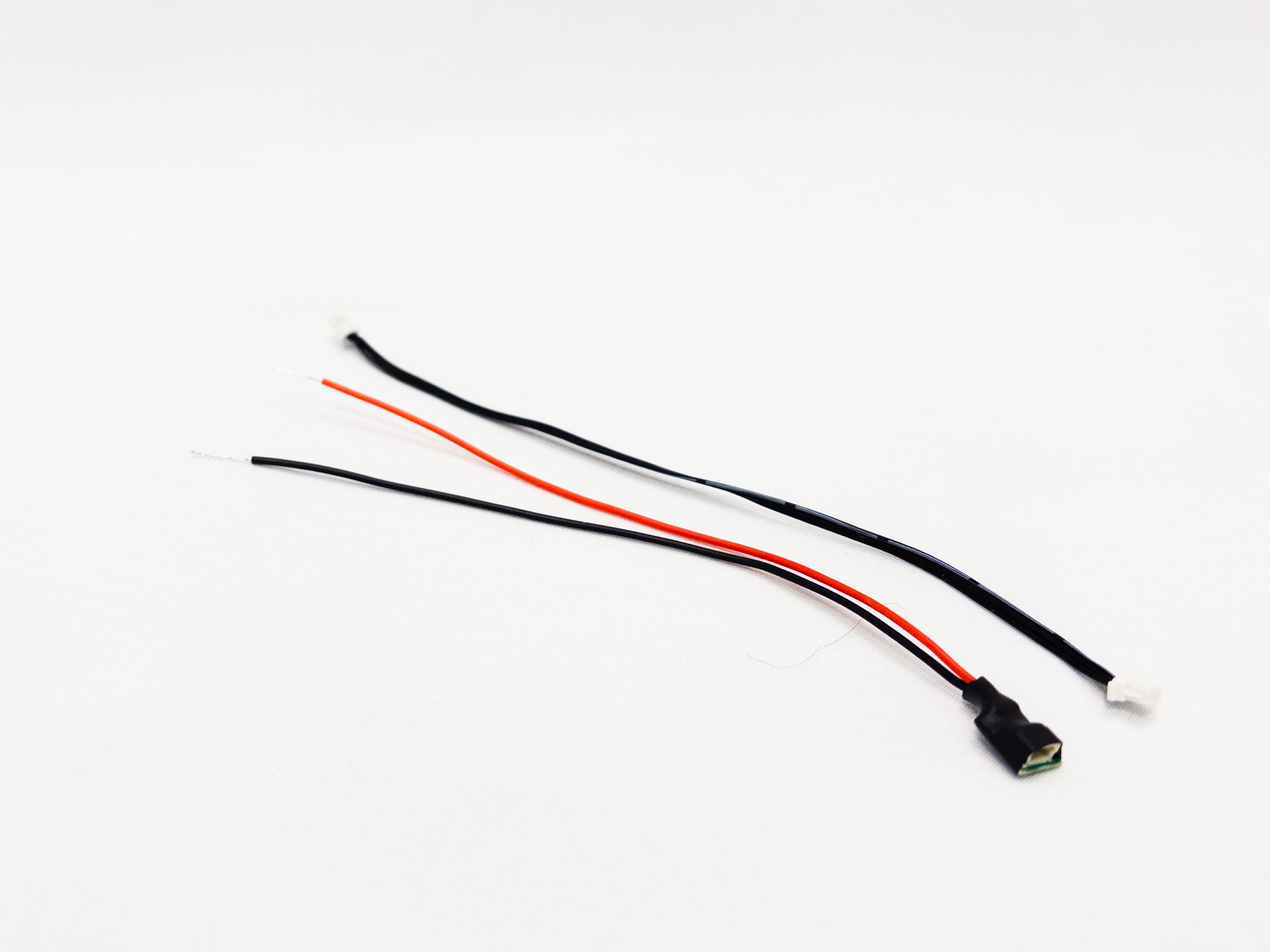

Voltage sensor allows you to measure voltage over a battery or some voltage source. Sensor allows measuring up to 19.8V. Sensor has loose wires for negative and positive wires which you can solder to required place or alternative install connectors for the wires.

Package content

  • 1 x voltage sensor

  • 1x 15cm 3-pin cable

Installation

Install sensor to 3-pin analog input.

Do not solder the wires before you have calibrated the sensor.

If you want to measure battery voltage, you can solder the measurement wires to battery connectors. If you want more hidden installation then you solder the wires to ESC side.

Configuration

Sensor requires calibaration to get accurate readings. You need multimeter to do the calibration accurately.

Process:

  • Connect plus and minus wire together

  • Calibrate offset

  • Connect plus and minus to voltage source (e.g. full battery)

  • Measure voltage over the sensor

  • Give the reference value and calibrate

Troubleshooting

N/A
