TestLogger Collector uses few different types of cables which are introduced on this page. Currently we offer cables as follows.
-
Receiver cables
-
3-pin cable to connect sensors
-
4-pin cable to connect sensors
-
Electric motor sensor cable
-
USB data cable
-
USB power cable
Receiver cables
Usage

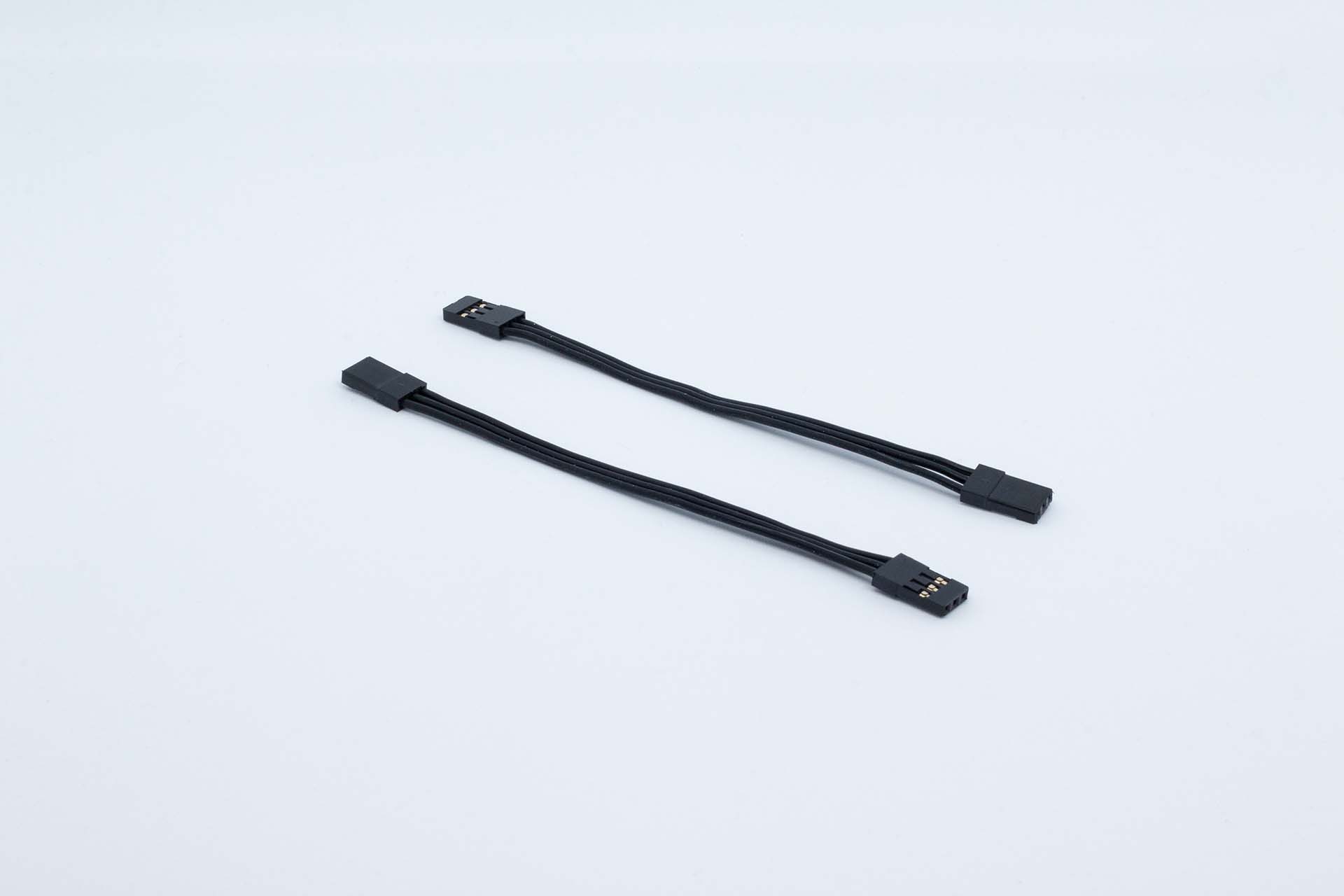

Extension cables for connecting receiver ports to main unit. All logged receiver signals are routed through the Collector main unit which means servos and ESC are connected to the main instead of receiver. The receiver cables are then utilised to connect the signal from receiver to main unit and then forwared to correct device.
Receiver cables are always connected to REC ports in main unit. Make sure you install the cable in correct way.
Options
Two different lengths are provided to make it easier to optimise the cable routing and installation.
-
6cm
-
12cm
3-pin cable
Usage
Options
-
5cm
-
10cm
-
15cm
-
20cm
4-pin cable
Usage
Options
-
5cm
-
10cm
-
15cm
-
20cm
Electric motor sensor cable
Usage
Options
-
4cm
USB cables
Usage
Used for charging beacon or data transfer between computer and Collector main unit.
Options
-
White micro usb cable. Used for data transfer and charging
-
Black micro usb cable. Used only for charging beacon. Data transfer not working!
