Get started¶
Warning
If you are new to Testlogger, then Check out the TestLogger concept and tool overview before starting!
Install Analyzer and if you don't have an account to TestLogger, please create one. Check this page for getting started Getting started.
Downloads¶
- Windows: https://github.com/testlogger/tl-analyzer-releases/releases/latest/download/TestLogger-Analyzer.exe
- MacOS: https://github.com/testlogger/tl-analyzer-releases/releases/latest/download/TestLogger-Analyzer.dmg
-
Linux
- RPM arm64: https://github.com/testlogger/tl-analyzer-releases/releases/download/v1.8.3/TestLogger-Analyzer-aarch64.rpm
- RPM x64: https://github.com/testlogger/tl-analyzer-releases/releases/download/v1.8.3/TestLogger-Analyzer-x86_64.rpm
- DEB arm64: https://github.com/testlogger/tl-analyzer-releases/releases/download/v1.8.3/TestLogger-Analyzer-arm64.deb
- DEB x64: https://github.com/testlogger/tl-analyzer-releases/releases/download/v1.8.3/TestLogger-Analyzer-amd64.deb
After installation and opening the application for the first, you must login. Use your TestLogger account for login.
Familiriaze yourself with the UI¶
We recommend to check the Navigation and shortcuts page to understand what UI elements there are and what shortcuts the application provides.
Open data file¶
First thing to do is to open any data file. Click
or use shortcut Cmd/Ctrl + o to open the data open dialogue. See more details from Opening data page.
Settings¶
It's good to check application settings after you have opened your first data file. You have one critical setting to be defined which is related to the distance calculation.

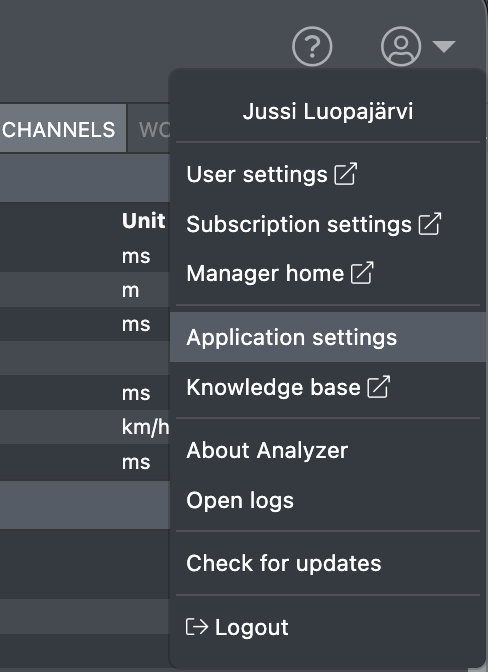

Application settings is available under the user menu on top right corner
| Attribute | Default value | Description |
|---|---|---|
| Distance channel type | Calculate from speed | Selection if distance channel type is speed or distance |
| Distance channel | Speed all | The speed channel what is used to calculate the distance. Speed or distance channel. |
| Display mode | Dark mode | Possibility to switch between dark and light interface. In normal situation Dark mode is better, but in bright sunlight we recommend to try light mode. |
| Update channel | Stable | Update channel for automatic updates |
| Default file browser tab | Local files | Define your desired default file browser tab. |
| Cursor follow | Enabled | Toggle cursor mode between auto follow and manual click cursor. Disable in case you are having performance issues with cursor movement. |
| Cursor markers | Enabled | Toggle small + markers shown on graphs in cursors position. Disable in case you are having performance issues with cursor movement. |
| Chart segment overlay | Enabled | Visualize track segments on line charts |
| Auto-scale Y-axis on pan | Disabled | |
| Debug mode | Disabled | Enable various debug features for troubleshooting purposes. |
What's next?¶
Read more about the workspace and analytics tools to start analyzing data by opening a data file from your local files or download file from TestLogger Manager.
